LED lighting for a modern public transport hub

CSW-ASEAN TOD, Kebayoran Baru, South Jakarta, Indonesia

Completed in late 2021, CSW-ASEAN TOD is a transit-oriented development (TOD) between several Transjakarta bus stops and the ASEAN MRT station on the old Centrale Stichting Wederopbouw (CSW) intersection at Kebayoran Baru, Jakarta, Indonesia.

The eye-catching light shows adorning its skybridge were the brainchild of local government representatives. The goal was to come up with a concept to draw the interest of the local community to the new MRT infrastructure that the government has invested in to better serve the city.

VIDEO: CSW-ASEAN TOD as seen from the air

Ingredients:

  • ENTTEC LED Mapper (ELM) pixel mapping software (96U licence)
  • 2 x ENTTEC S-Play smart light show controllers

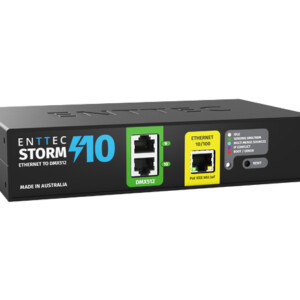

  • 8 x ENTTEC Storm installation-grade Ethernet to DMX gateways
  • 44 Universes of Panasonic RGBW LED wall washers (Model No. NNP95480GL)




MRT transport is new in Indonesia and off to a great start thanks to combined efforts from PT. Panasonic Gobel Eco Solutions Sales Indonesia, and PT Scienter Teknologi Indonesia heading up the lighting design and supply work.

The project spread 44 Universes worth of Panasonic NNP95480GL RGBW wall washers (approximately 5600 LED pixels) across six canopies to provide the output and number of pixels required to generate dynamic chases throughout the structure.

Control was achieved with 2 x ENTTEC S-Play controllers streaming Art-Net out to 8 x ENTTEC Storms, with the light shows being mapped and programmed into the S-Plays from a computer running the award-winning ELM software with a PRO 96U license. The S-Play’s scheduling functions allowed the team to program the shows to play on set schedules, even accounting for special occasions and holidays.

Indonesian transit skybridge

Indonesian transit skybridge
Resembling a disc when seen from above, the TOD was built to facilitate
the transfer of commuters between different modes of public transport.

Thanks to the combined effort of all involved, the new MRT station skybridge has been transformed into a very Instagrammable local icon.

Great work, team!

VIDEO: CSW-ASEAN TOD as seen from the ground
Indonesian transit skybridge
Indonesian transit skybridge
Indonesian transit skybridge


Credits:

Project name: Integrated Skybridge of TransJakarta Centrale Stichting Wederopbouw (CSW) with MRT Station ASEAN
Project address: Jalan Kyai Maja, Kebayoran Baru, South Jakarta, Indonesia.
Project owner: PT. Transportasi Jakarta
Main contractor: PT. Adhi Persada Gedung
Lighting design & supply: PT. Panasonic Gobel Eco Solutions Sales Indonesia; PT. Scienter Teknologi Indonesia
Project applicators: PT. Syailendra Primatama Sejahtera; PT. Reka Sarana Sakti Pratama

Indonesian transit skybridge
