DIN PIXIE

A smart, cost-effective lighting control solution, the DIN PIXIE is a compact, 2-universe, DMX to LED pixel protocol converter and standalone player, engineered to take any architectural, commercial or entertainment project to the next level.

SKU: 73539

2-universe DMX to SPI pixel converter & standalone player.

The DIN PIXIE is the perfect device for carrying a ready-to-go lighting show around with you – literally in your pocket. It can play back a stored sequence of up to 4 universes recorded using Art-Net via EMU software. Trigger your standalone show either from within EMU or on power-up of the DIN PIXIE.

The DIN PIXIE expands upon the rock solid DMX USB technology and developer API that put ENTTEC on the map over 20 years ago with our original, bestselling Pixie Driver. The DIN PIXIE is our evolution of that classic device – only it’s far more compact.

With its industry-leading, wide input voltage range of 5-48V, the DIN PIXIE is powered directly by your LED pixel strip or dots via either port. This means there’s no need for extra wires or dedicated power supplies taking up precious socket space, making it a dream device for a fast, efficient install.

Wiring mishaps can happen to even the best of installers from time to time, but at least you can be assured that your DIN PIXIE features a self-healing fuse with surge protection on every port. Plus, with reverse polarity protection on each SPI data line and built-in overtemperature protection, so you know your device will be safe and sound.

With support for multiple LED integrated circuits, the DIN PIXIE is packed with installer-friendly features. Its intuitive configuration enables the device to be heavily tailored to your projects, while its slim 4-DIN-unit form factor allows for discreet surface or TS-35 DIN rail mounting.

ENTTEC pixel controllers support more than 20-pixel protocols by default within the device. In the event of a missing protocol, our custom feature allows the users to create a custom protocol for the desired pixel fixture anytime (two key criteria apply) without having to submit a support request for new firmware. Note: Rev B devices only.


Let’s get started!

It’s so easy to produce great shows and ambiences with a DIN PIXIE as part of your lighting kit.
Follow this short demonstration to learn about the essential features of the device, and see how simple it is to set up.
You’ll be thrilling your audiences in no time!


NOTE: This video features the Rev A version of the DIN PIXIE which features a different LED status configuration to the current Rev B model. The functionality of the device remains unchanged.

Specifications

Resources

DIN PIXIE data sheet

DIN PIXIE user manual

DIN PIXIE USB API

Custom protocol creation guide

DIN PIXIE CAD drawing + dimensions

DIN PIXIE hi-res images (19.8mb)

DIN PIXIE firmware v2.1 (Rev B only)

DIN PIXIE firmware v1.20 (Rev A only)

DIN PIXIE release notes

Rev A or Rev B: which version do I have?
If your serial number is less than 2358764, you have a DIN PIXIE Rev A. If your serial number is greater than 2358765, you have a DIN PIXIE Rev B.

Please note that firmware versions V2.0 upwards are not backward compatible with DIN PIXIE Rev A.

Pre-listed supported protocols*: APA 104, GS8208B, SPXL (16-bit & 8-bit), SK6812, TM1804, TM1812, TM1814, UCS1903, UCS2903, UCS2904, UCS8903 (16-bit & 8-bit), UCS8904* (16-bit & 8-bit), WS2811, WS2812, WS2812B, WS2813, WS2815, WS2818*, AHL003 (16-bit & 8-bit), SJ1221(16-bit & 8-bit), TLC5973(16-bit & 8-bit). *IMPORTANT: If you wish to control a protocol marked with a * and the option to do so is missing in the firmware interface for your product version, please select WS2811 or WS2812b instead for your LEDs to work properly.

Get in Touch

Enquire about the DIN PIXIE

Explore the DIN PIXIE: Connect with our team to discuss your project needs and let us tailor a solution for you with pricing in 24-48 hours. Contact an expert now or subscribe to our newsletter for the latest updates and insights.

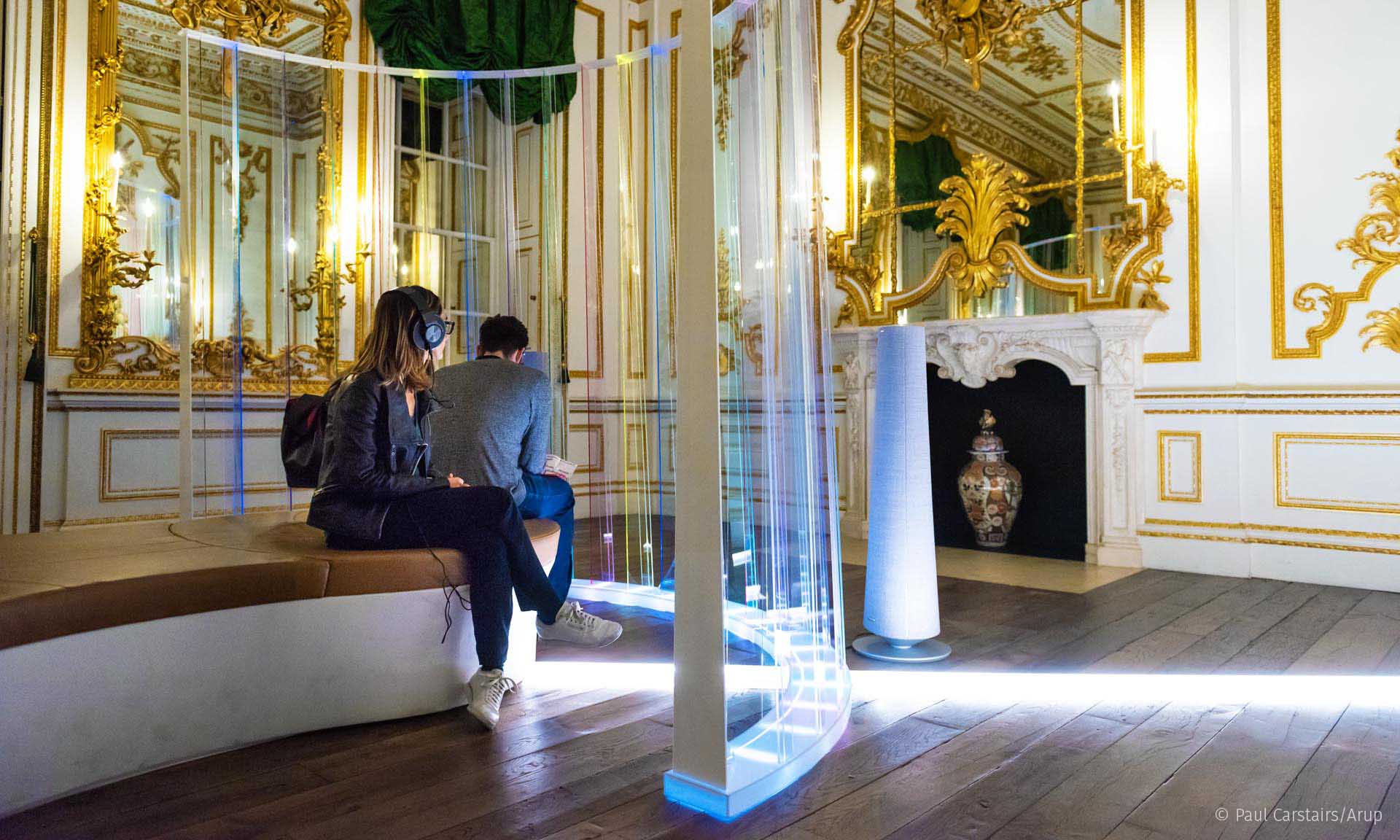

The Victoria and Albert Museum, London UK
