12V RGB long-range LED pixel strip

12V RGB long-range LED pixel strip for professional applications

ENTTEC 's 8PXB60-RGB-12V series are 12V, 60-LED-per-metre, addressable RGB LED pixel strips designed for long-range professional architectural and entertainment installations, achieving soft pastels or saturated colours on a large scale.

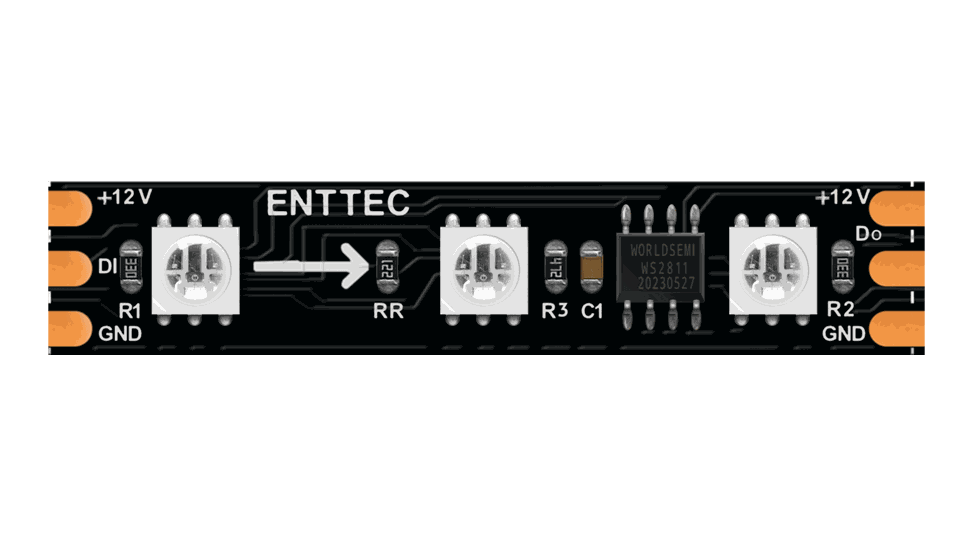

Close-up of the black PCB strip, three LEDs and a WS2811 driver chip between copper solder pads marked ENTTEC, +12V, DI, Do and GND.

Image 1 of 3

60 RGB LEDs per metre

ENTTEC LED pixel strip boasts 60 colour-calibrated RGB LEDs per metre. Each LED is engineered to offer consistent brightness and extended colour gamut.

Bright + super-efficient

With a maximum power consumption of only 10.5 watts per metre, and a lumen capacity of 349.4 lumens per metre, this 12V pixel strip provides a bright and efficient package.

Australian designed for top performance

Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

Go further than before

On our 12V 8PXB60-RGB-12V strip, every consecutive group of three SMD chips behave as one pixel. This means that you can free up extra channels to triple your output capabilities: perfect for controlling longer setups.

Millions of colours

Each pixel can achieve a 24-bit, True Colour display. That’s a whopping 16,777,216 possible colours for each LED chip.

Extend as you please

Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.

1-year warranty

ENTTEC are proud to back up the confidence in our research, engineering and quality control with a 1-year return-to-base manufacturer warranty on this product.

International compliance

The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognised standards for sustainability and safety.

This ENTTEC product also conforms to the following international compliance and safety standards:

Is this the right LED strip for your project?

With such a variety of LED strips available, it can be easy to get confused as to which strip might be best suited for your requirements.

Check out this video to learn about all the main considerations you need to take into account, such as CV strip v pixel strip, voltage, protocols, RGB v RGBW, pixels per metre, PCB colour, and more.

If you’re still unsure after viewing, don’t panic – we’re always here to help you at ENTTEC. Get in touch with us and we’ll point you in the right direction!

A black strip and a white strip on a pale textured background beside an ENTTEC ruler, above a row of compliance marks.

Specifications

Search specifications

Connectors and network
Connectors	2 x 3-pin JST SM connectors (3A Max)
Output and control
Control protocol	WS2811
DMX channels per pixel	3
Pixel mapping order	RGB
Backup data line	No
Efficacy (lumens per watt)	33.28
Beam angle	120°
Power and thermal
Input voltage	12V
Max. watts per metre	10.5 W
Environmental operating temperature	0°C to 50°C / 32°F to 122°F
Environmental operating humidity	5 - 95% (non-condensing)
Physical and supply
IP rating	IP20
PCB colour	Black or white options
PCB width	10mm / 0.40”
Min. bend radius	30mm / 1.2”
Spacing between cuttable sections	50mm / 1.98”
Weight	(5m roll) 0.18Kg / 0.40lbs
Dimensions	(5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63”
Shipping weight (5-roll carton)	0.80Kg / 1.76lbs
Shipping dimensions (5-roll carton)	260 x 225 x 93mm / 10.24 x 10.04 x 3.66”
Warranty	1-year return-to-base manufacturer warranty
Compliance	UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
