Pixel dot walls at The Bank Nightclub

(Nightclub location: Queensland, Australia 2018)

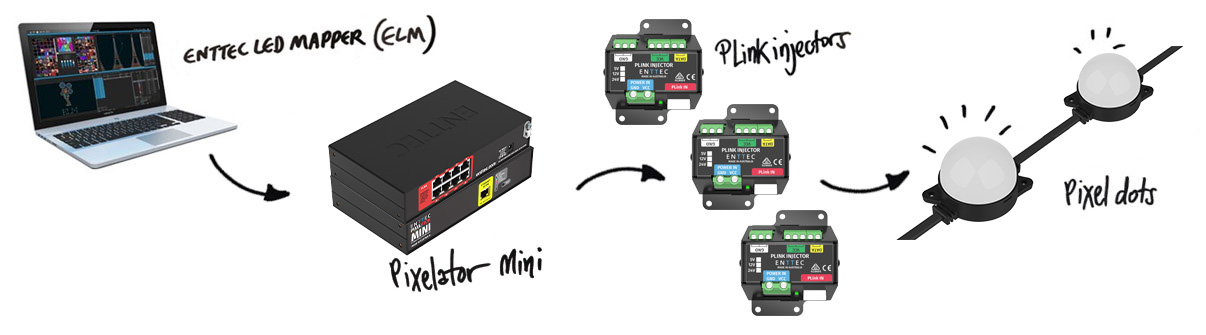

Ingredients:

1 x ENTTEC LED Mapper (ELM) The ultimate, powerful, and intuitive 2D and 3D LED pixel mapping software solution.

1 x Pixelator Mini A smart, cost-effective lighting control solution, the Pixelator Mini is a compact 16 Universe rack, surface & DIN-rail mountable, eDMX to LED pixel protocol converter.

7 x Plink Injector Our 2-Universe PLink Injector has been engineered to work alongside your Pixelator to extend your LED pixel layout over long distances.

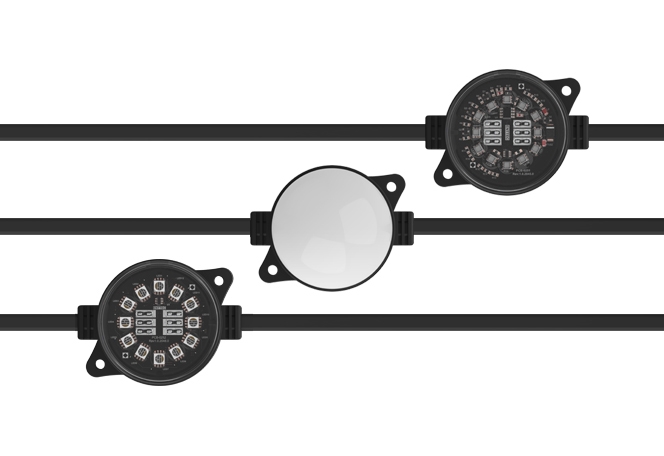

Smart pixel dots Robust and reliable, ENTTEC’s high-resolution, individually-addressable SMART PXL dot series are designed to withstand the harshest environments.

NQAV

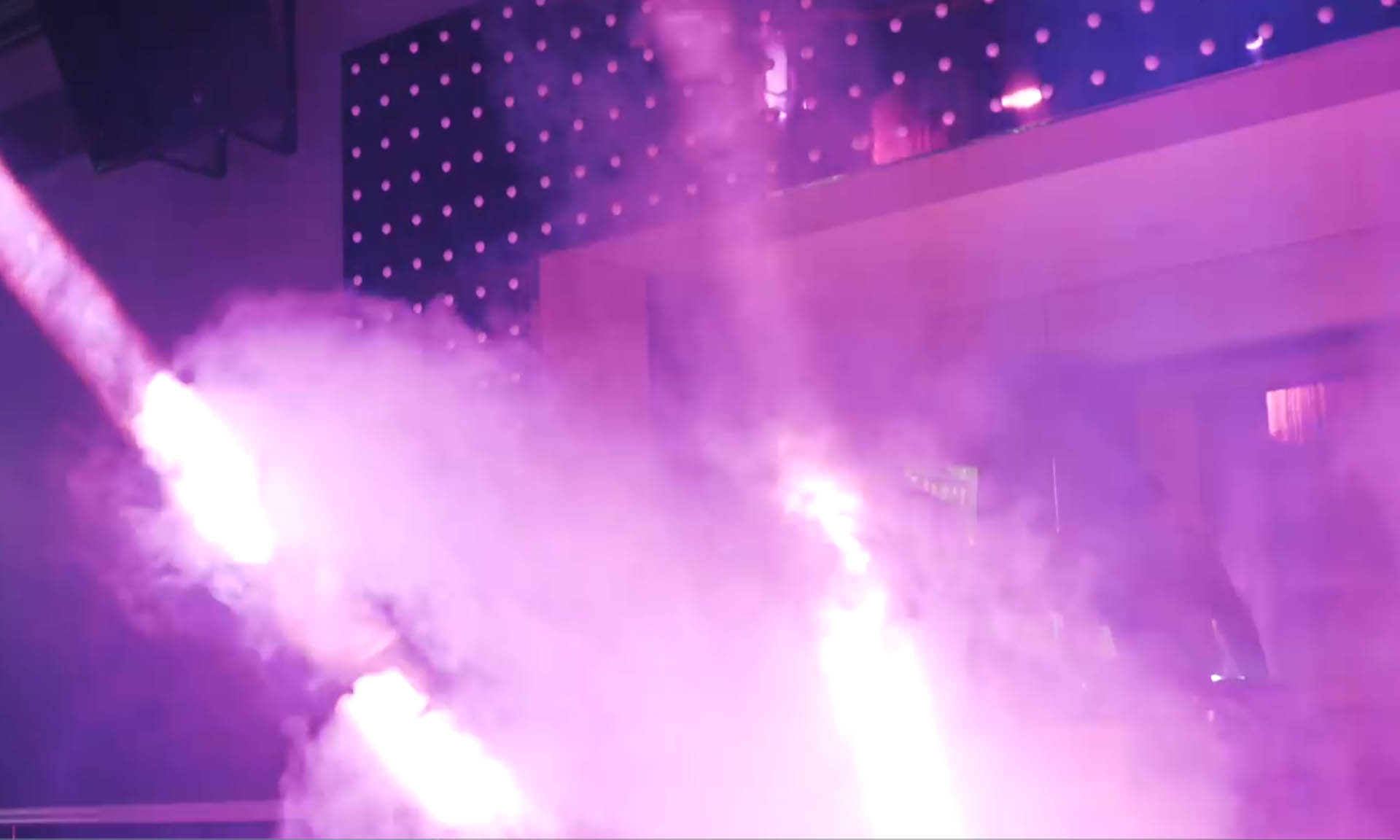

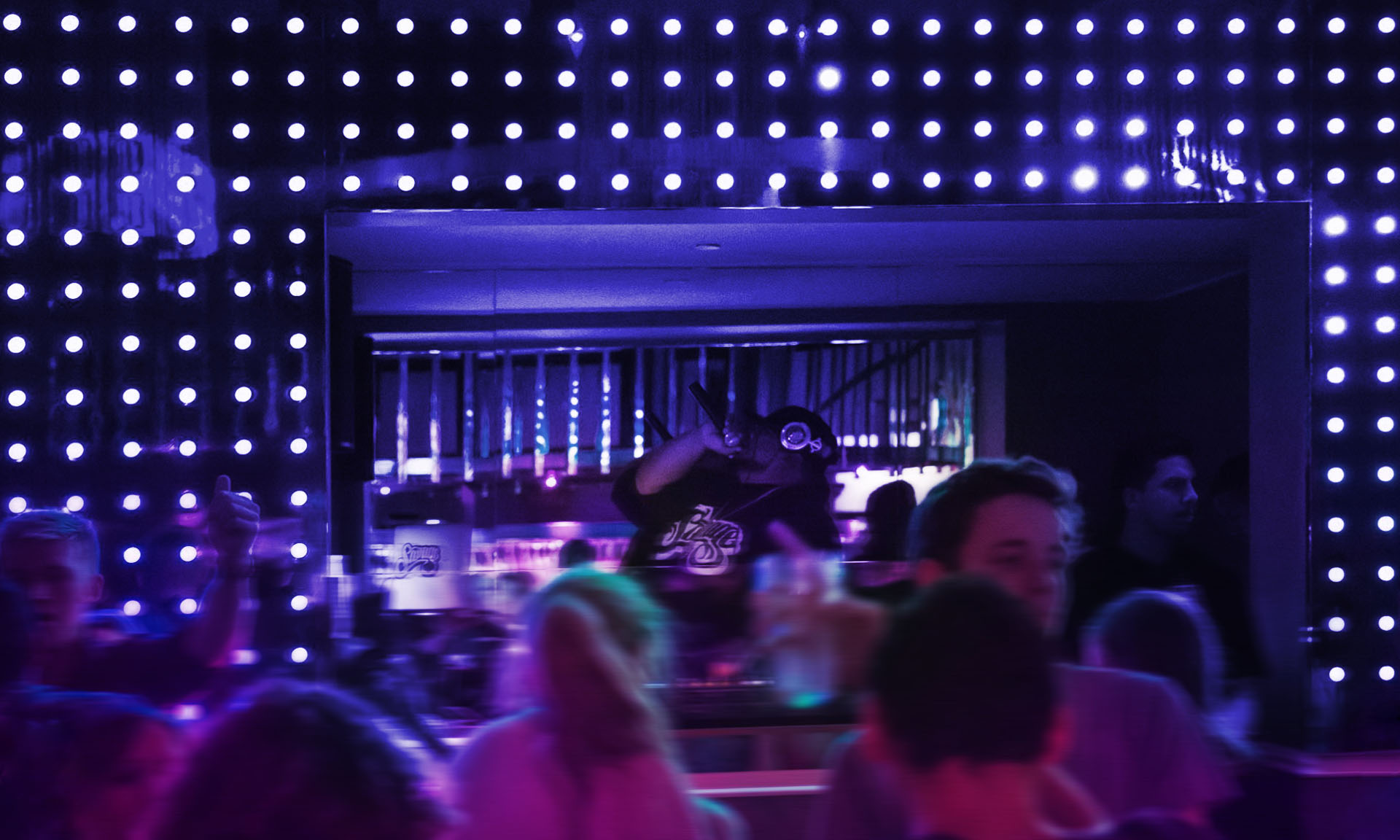

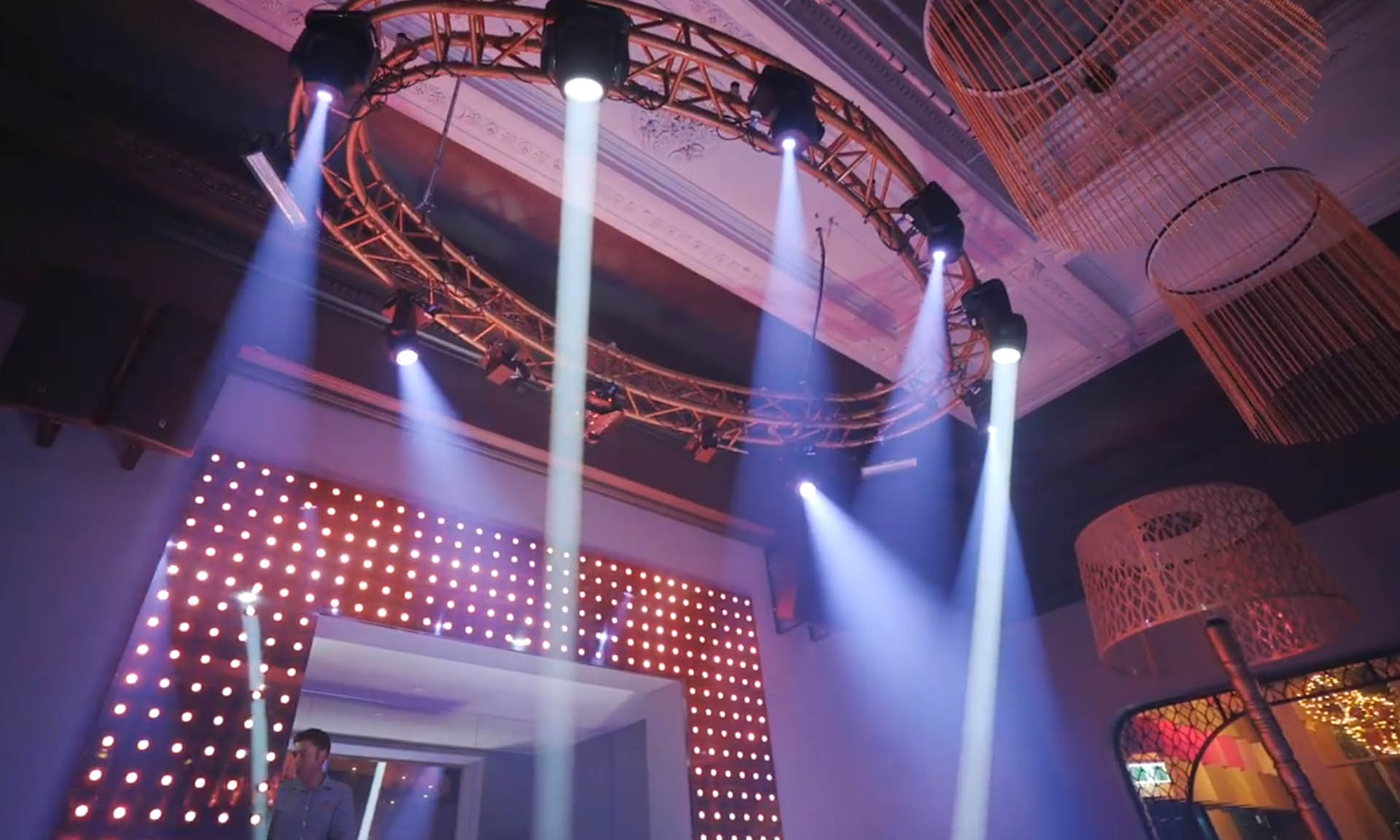

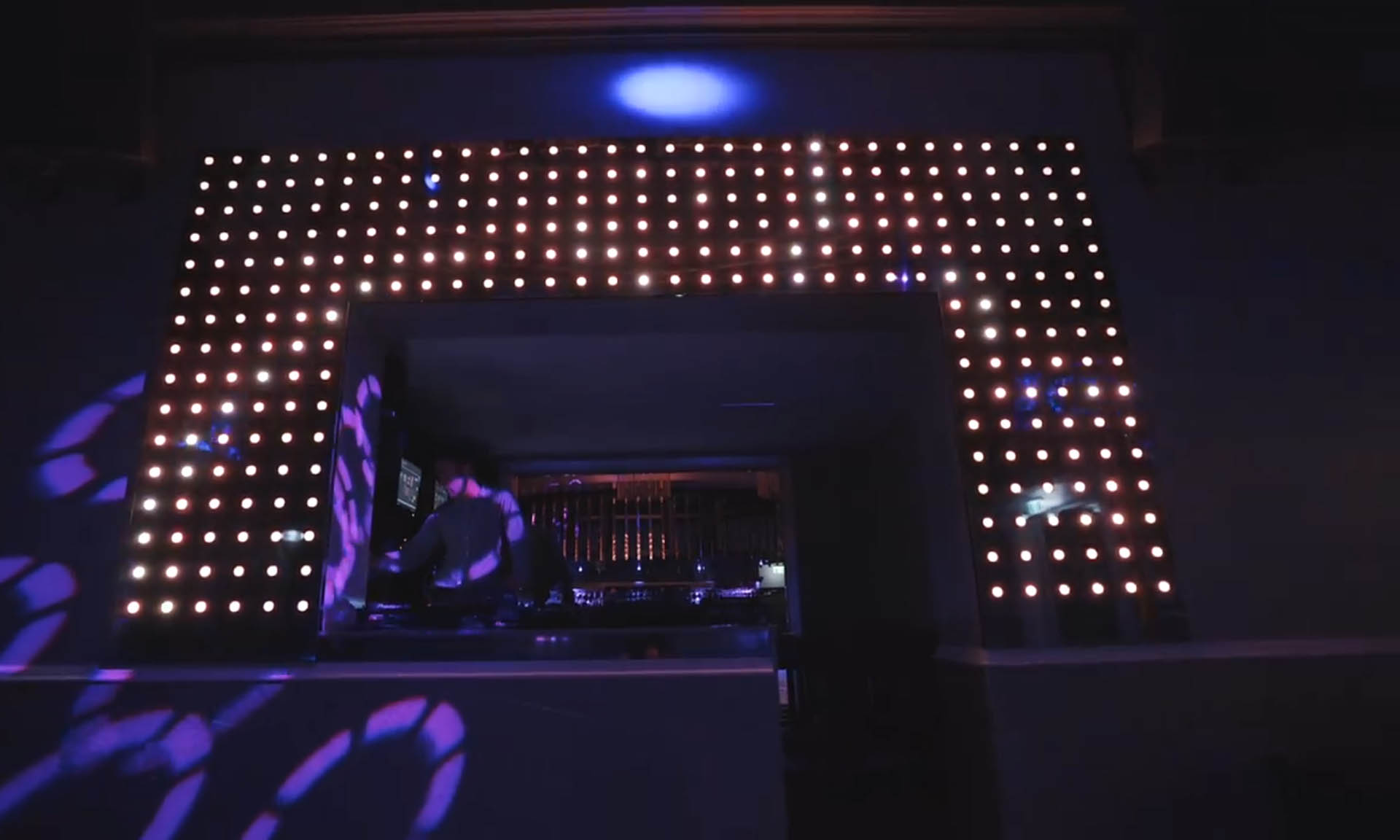

NQAV reached out to ENTTEC to help with the feature wall around the DJ booth, as they wanted something dynamic and unique. Pixel dots were decided upon (9PDOT3’s), as this gave them control over each individual LED, in order to create something spectacular.

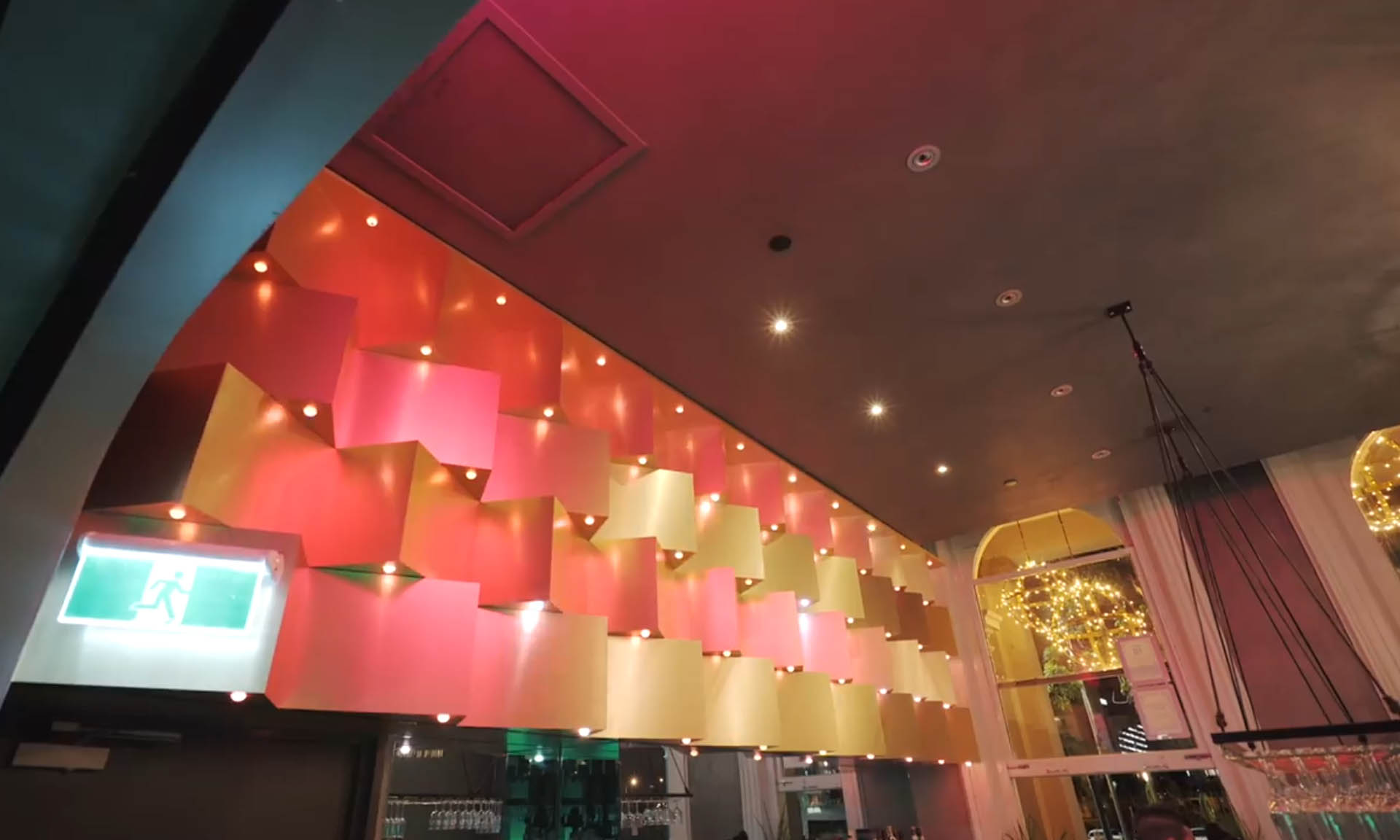

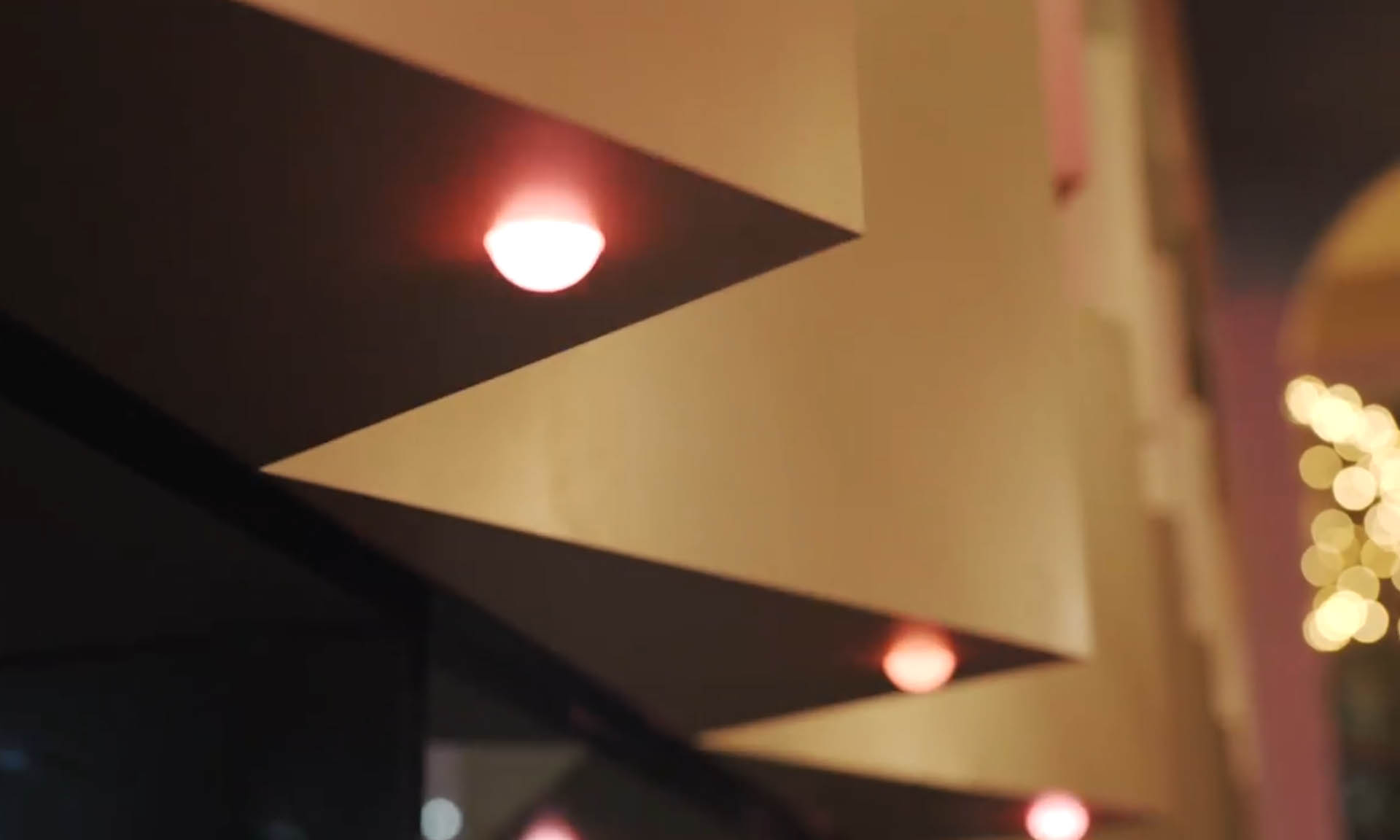

As the project developed, the client then decided that a second feature wall around the bar should also be designed. Initially, simple downlights were suggested but it became clear that something with greater impact was needed. The dots were offered up as an alternative and were quickly given the green light.

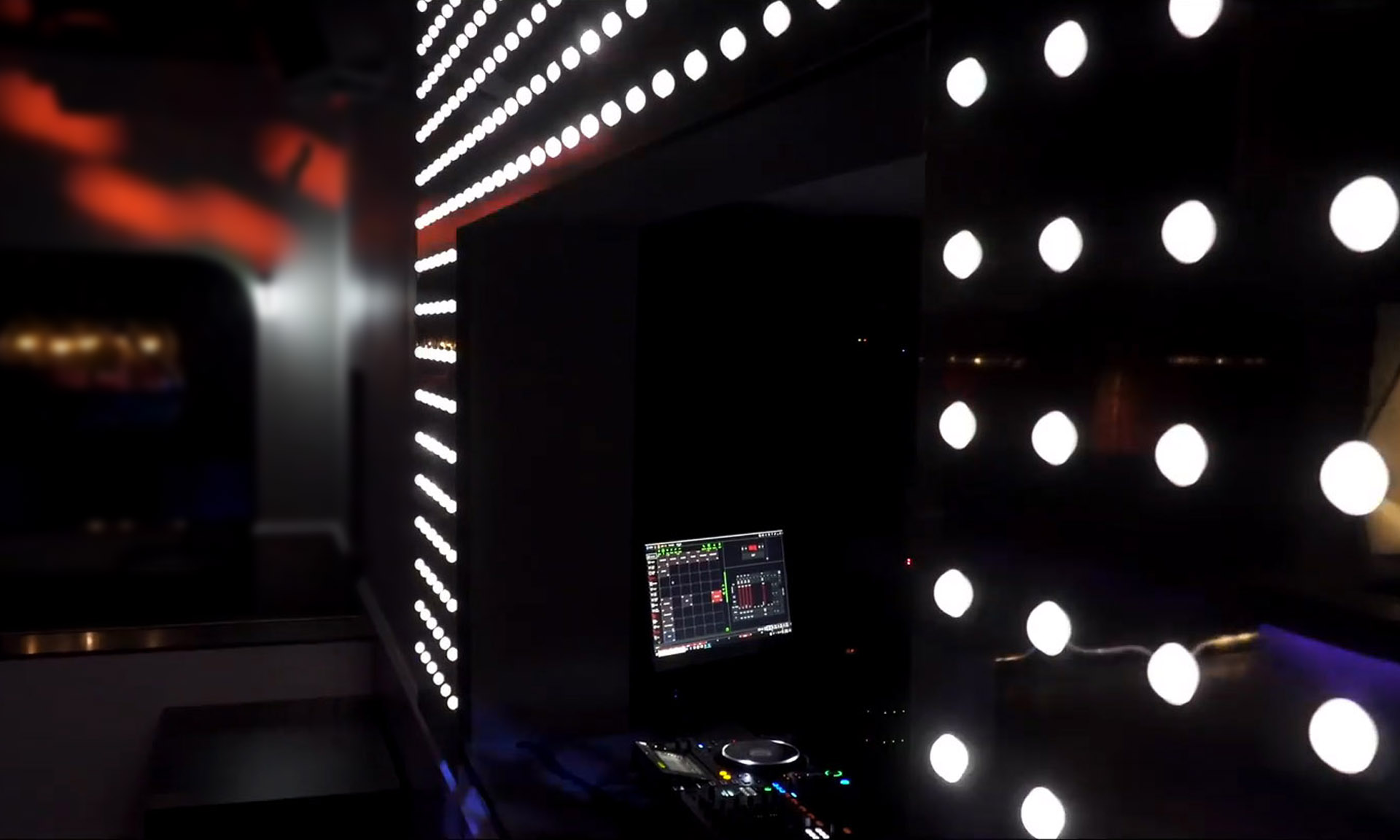

As a result, both feature walls were able to be controlled individually or as a combined system throughout the nightclub =. ENTTEC LED Mapper (ELM) was used to map the two displays which can be controlled easily by the DJ to create engaging content.

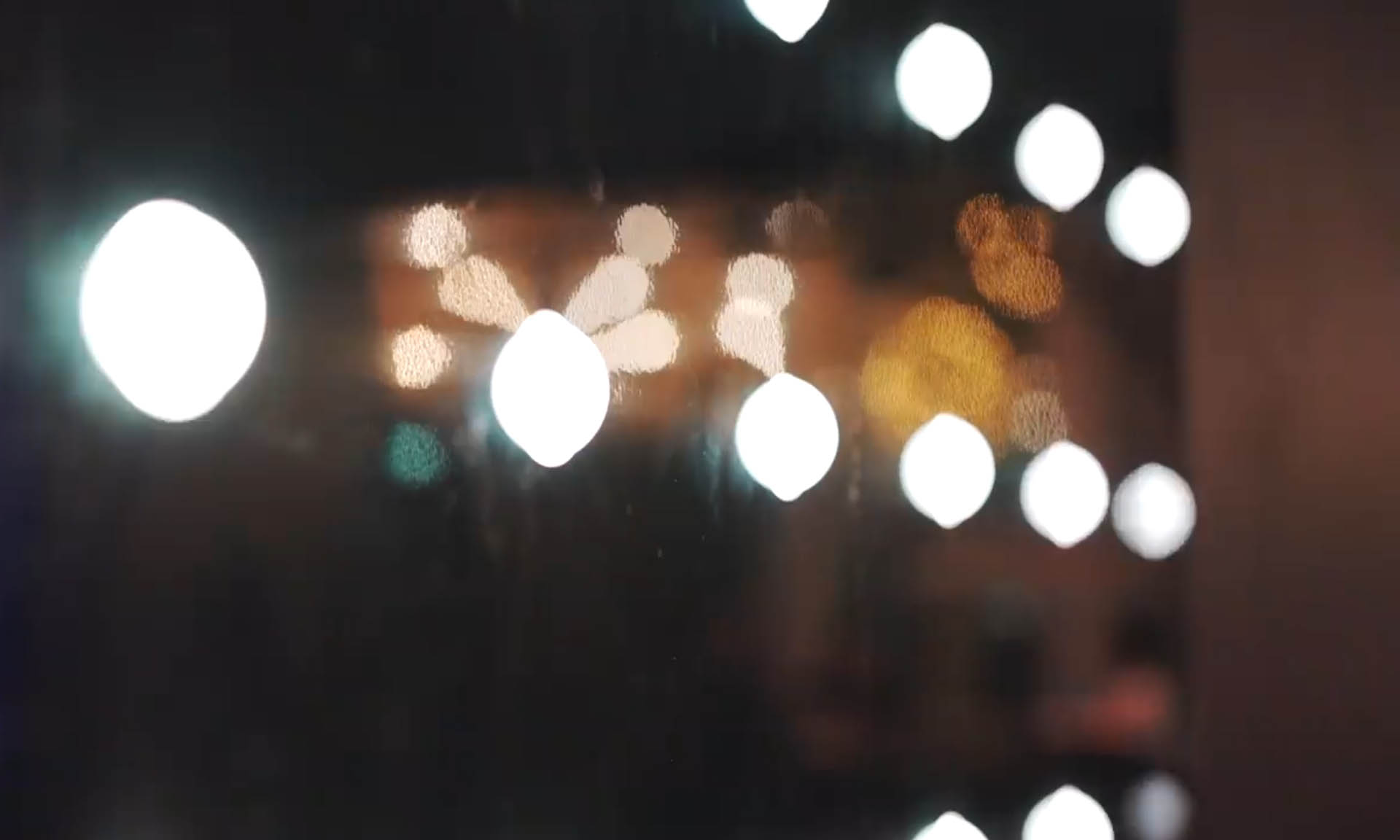

LED pixel dot



“ENTTEC were an obvious choice due to availability, price and knowledge of the equipment. Support was always available – both sales and technical. The product was also easy to install and use…it has really created the “WOW” factor for the venue. To have all dots controlled in conjunction with each other or individually looks amazing. From the start of the night with a simple fade in and out of basic colour, through to fast paced dynamic content later on, the ELM software takes care of it all.”
Darryl Byrne Project & Lighting Designer
