Constant Voltage LED Tape Driver and power supply in one.

FeaturesDownloadsTutorials

Products that will be added:

  • IEC MAINS LEAD (AU) – FREE

$440.00 +GST

SKU: 73-520
Powerful all-in-one LED driver

The CV Driver MK2 is a high-power, 24V, six-channel LED driver that has forged a reputation for reliability. You’ll find it hard at work in television studios, installations and live events around the world.





Address the unit using its local dipswitch. Alternatively, use either the DMX USB Pro or DMX USB Pro MK2 with the free functionality of RDM Controller. Adjust the PWM frequency and monitor the temperature using this method. This ensures that both feeds of LED strip attached are best tuned to their environment either on or off camera.

Forward-facing LED indicators show the intensity of each channel and presence of a DMX signal to aid on-site troubleshooting. Above all, this LED driver is designed to make your projects a breeze!

Features

All-in-one driver

With an in-built power supply (with auto-ranging 110-240V AC input) and driver, this all-in-one driver contains every ingredient you need to control your 24V LED strips.

DMX control and RDM configuration

Full DMX-512 compatibility, ANSI E1.20 RDM support, and PWM configuration allow the CV Driver MK2 to be truly versatile. Simply use a DMX USB PRO with ENTTEC RDM Controller App to change address or personality or keep an eye on its internal temperature sensors.

Power when you need it

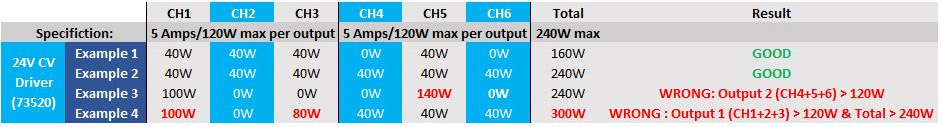

CV driver supports up-to 5 Amps per output, and a massive 240 watts (73520) total output power. Which means, it’s ready to power and drive over 20 metres of ENTTEC 9VL4 24V RGB LED tape without needing anything extra.

Smart heat management

Thanks to the in-built temperature and voltage sensors combined with advanced heat management, the smart CV Driver MK2 limits the output if it gets too hot.
