9CY CTA LED tape (10m)

Great for uniformed designs or injecting some creative flair to a project.

SKU: 9CY-10

Overview
Features
Specifications
Resources

Color Temperature Adjustable LED Strips for Versatile Design Projects

ENTTEC designs and manufactures a complete range of high-quality, high-output LED strips to suit any desired mood or effect. CTA tape is colour temperature adjustable, allowing you to achieve your required setting.

9CY is a 24V CTA LED Tape, which allows variations between 3000K to 5500K color temperature range.

You can drive this CTA tape at multiple colour temperature ranges. The maximum at 3000K is 850 lumens per metre, and the maximum at 5500K is 953 lumens per metre.

Maximum input current rating is 0.49 A per metre, which equals 2.45 A for 5-metre length. 9CY consumes a maximum of 11.8W per metre, and has a maximum continuous length of 12m with single power feed or 15m with dual power feed.

Specifications

Connection (In/Out)	3Pin solder tabs
IP rating	IP20
Input voltage	24V
Current consumption (max)	0.49A / mtr
LED quantity	120pcs / mtr
Watts/meter (max)	11.8
Lumens/meter (max)	1803
Color temperature (3 variants)	6000K/4000K/3000K
CRI (Ra)	>90¹
R9	>50
Beam angle	120°
PCB Color	White

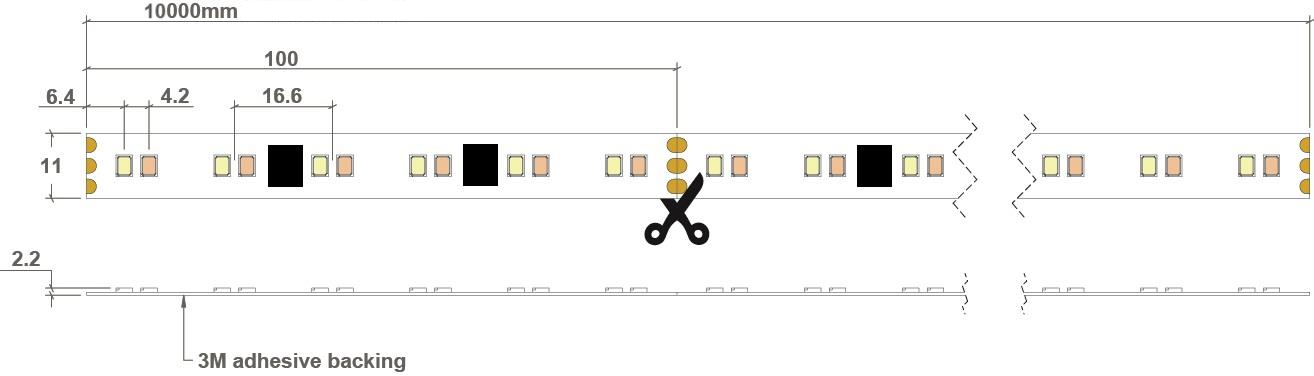

Led strip width	10mm / 0.39”
Spacing between cuttable sections	100mm / 3.94”
Working/Storage temperature	-30~55°C / 0°C~60°C
Environmental operating humidity	5-95% (non-condensing)
Weight (10m roll)	0.25kg / 0.55lbs
Shipping weight (10m roll)	0.30kg / 0.66lbs
Shipping dimensions (10m roll)	250mm x 250mm x 30mm / 9.84″ x 9.84″ x 1.18”
Warranty	1 year manufacturer’s return-to-base warranty
