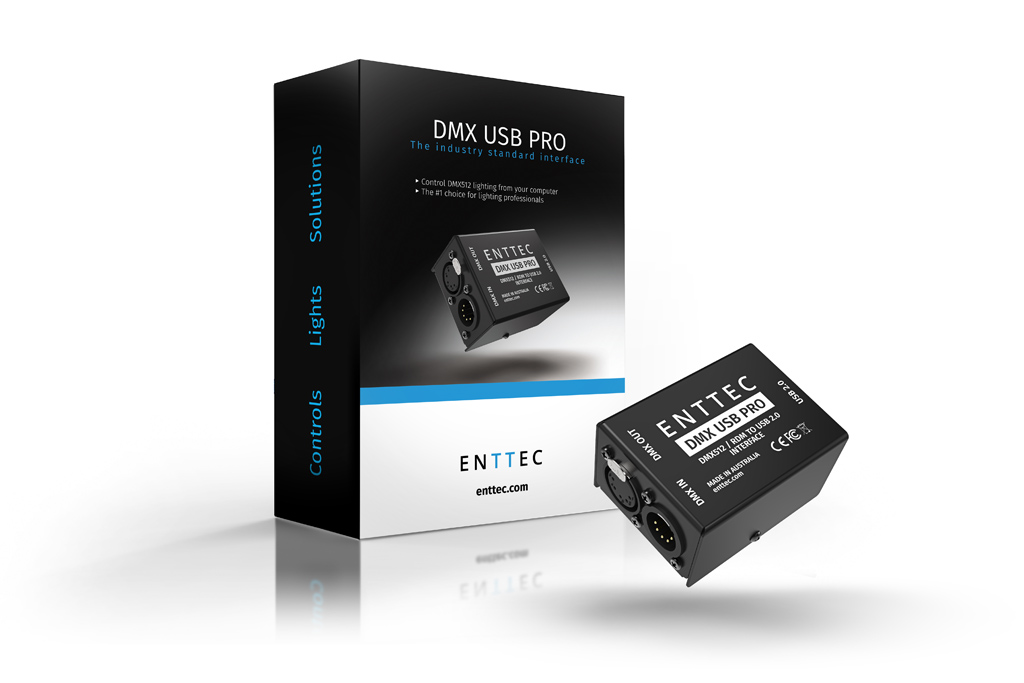

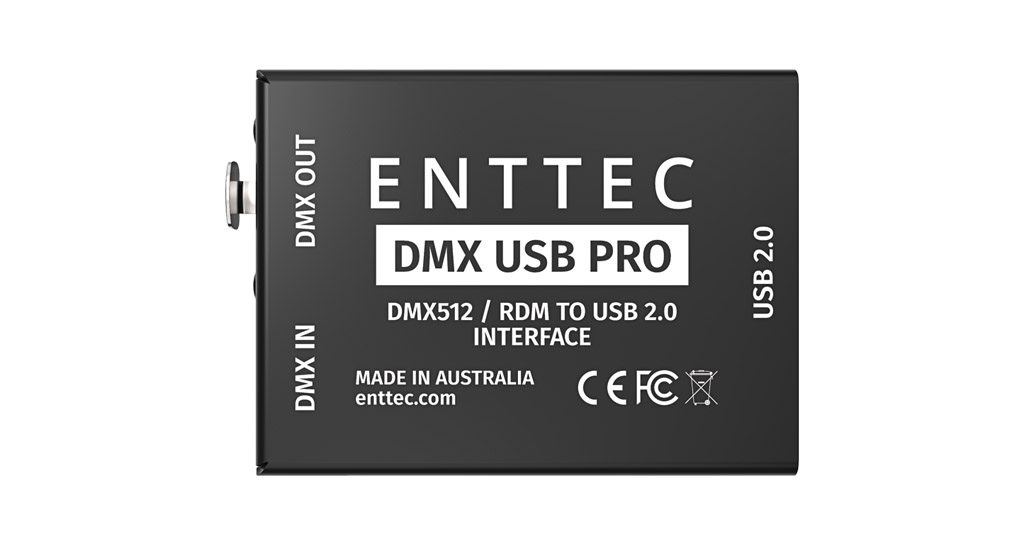

DMX USB Pro

SKU: 70304

The first choice of lighting professionals

Products don’t become an industry standard for no reason. The DMX USB Pro has proven for a number of years that it’s both a reliable and robust product usable for a number of applications. It has been adopted by multiple professionals across the world. The DMX USB Pro allows for simple USB 2.0 support through a robust USB-B connection, sending or receiving a physical DMX512 signal using PCs, Macs and Linux devices running a broad array of third-party software.

With industry standard-5 pin input and output connections as well as 1500V full isolation for both data and power lines, you can rest assured that your computer will be protected from any stray voltages and faults that may occur on the DMX line. Furthermore, this DMX USB interface features an internal frame buffer for consistent DMX generation when outputting. This means it isn’t dependant on your PC’s processor to regulate a steady, reliable flow of data and to provide a stable data stream regardless of your PC’s workload.
You can also view the activity of the DMX USB Pro quickly using it’s LED status indicator. Use ENTTEC’s free PRO-Manager software to test, update and configure your USB Pro alongside other products in the ENTTEC range. Pro Manager is easy to use and runs on both Windows and Mac (up to OSX 10.11). You can even change the firmware to support your exacting requirement (RDM or Non-RDM). The DMX USB Pro is compatible with an enormous range of commercial and free software.

So no matter what software you choose, you know you can rely on ENTTEC DMX USB PRO to do the job.

dmx usb interface

 Features

Widely compatible

Designed for simple USB connection across Windows, Mac and Linux, the DMX USB Pro is compatible with an enormous range of commercial and free software. So no matter what software you choose, you know you can rely on ENTTEC DMX USB PRO to do the job.

Windows, Mac and Linux

Industry Standard USB 2.0 support on Windows PC and Mac OSX, and popular Linux flavours. Thanks to FTDI drivers, which enable the USB communication between your computer and DMX USB PRO, it is compatible with the majority of computers. Even Raspberry Pi is now supported, for the hobbyist within you.

DMX Input or Output

The DMX USB Pro supports either, DMX Input or DMX Output mode and comes RDM enabled too (when running correct firmware). When outputting DMX, the Pro makes use of its internal frame buffer for steady DMX Generation way ahead of the competition. No, no matter what project you have, the DMX USB PRO is the perfect device to accompany your computer and software to provide a cost-effective, reliable DMX connection.

Change it as you please

Refresh Rate is fully configurable from 1 to 40 Fps. Break time is configurable from 96uS to 1.3mS, and MaB is configurable from 10.6uS to 1.3mS. You can even change the firmware to support your requirement. Two interchangeable versions of firmware (RDM and Non-RDM) have been created to allow quick changing between settings using the PRO-Manager.

Isolated to protect

1500 V full isolation (data & power lines to protect your computer from surges)

dmx usb interface

 Compatible Apps

Recommended App: D-PRO

D-PRO is a software-based lighting controller which plays well with a host of different professional level hardware devices from ENTTEC.

The good partner for DMX USB PRO.
It includes D-PRO Player, a touch screen friendly interface to easily control your cues.
An OSC controller (such as TouchOSC) or MIDI input can be used to remotely trigger D-PRO.
And it’s Windows and Mac OSX compatible.

3rd Party Controller Apps

Official Tool: PRO Manager

PRO-Manager allows you to test and update your ENTTEC USB PRO. It’s easy to use and runs on both Windows and Mac (up to OSX 10.11).

3rd Party Controller Apps

3rd Party Visualizer Apps

3rd Party Media Server Apps

3rd Party Utilities
