Designed to be highly practical, the ODE POE Mk2 is a solid-state single universe RDM compatible DMX node featuring PoE (802.3af).
PLEASE NOTE: Due to the current global components shortage, a surcharge has been temporarily added to our regular purchase price for this product. The price displayed below already includes this figure.
Power Over Ethernet DMX interface – more powerful than ever

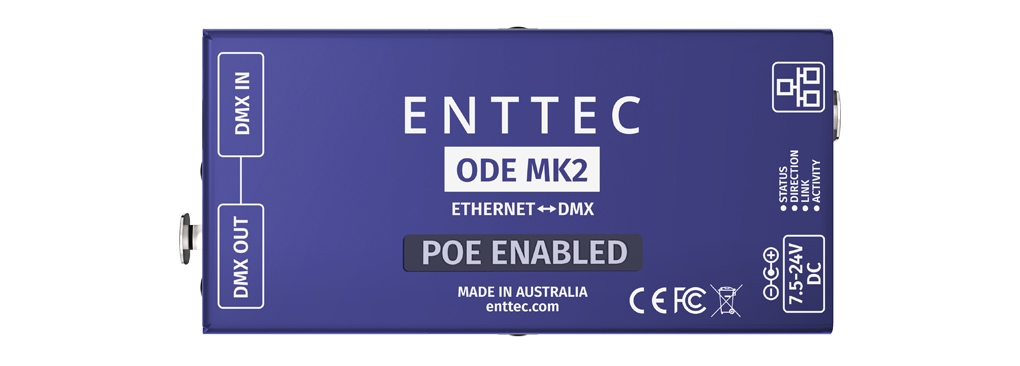

The ODE Mk2 PoE is a solid-state single universe RDM compatible DMX node featuring PoE (802.3af) designed for the highest level of portability, simplicity, and practicality. A perfect solution for converting from a multitude of Ethernet-based lighting protocols to physical DMX and vice versa without the need for adaptors. The ODE Mk2 PoE features the same modern and intuitive web-based configuration found in our premium products including, diagnostics, either LTP or HTP Merging (with up to 2 sources), and RDM support. All in the form factor of a portable single universe node. The ODE Mk2 PoE’s four LED indicators can be used to visually check the status of your ODE Mk2 PoE without the need to access the web interface. Use the ODE Mk2 PoE in conjunction with a wireless router to give a buffered DMX output from any sACN / ArtNet compatible iOS or Android application.
Enjoy trusted industry-standard performance at a budget-friendly price point. In addition, the ODE Mk2 PoE is available without a PoE option or in a DIN-rail form factor to ensure the best flexibility. And for even greater flexibility, truss mount your ODE using the ODE Truss mount kit.
Power over Ethernet
Supports IEEE 802.3af to provide Power over Ethernet. A POE Injector or router is required to provide power over Ethernet.
Easy to use

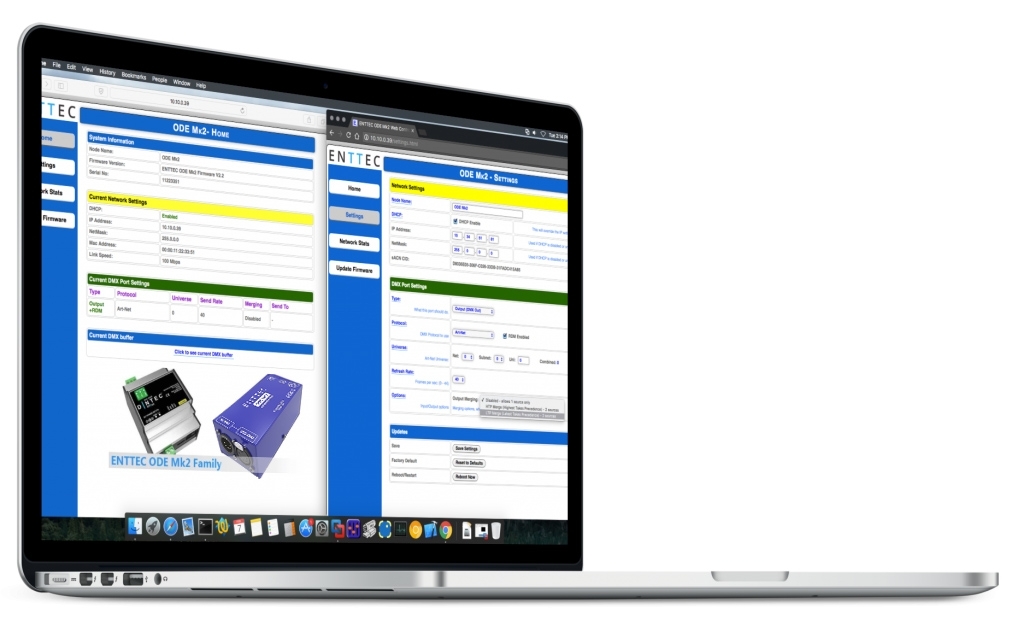

The ODE PoE Mk2 supports web-based configuration and quick discovery using ENTTEC’s free NMU Software compatible with all modern browsers.
Multiple protocols support
Supports Art-Net 1/2/3, Streaming ACN sACN, and ESP. Use whichever you prefer, simply change the protocol using the web configuration.
Ready to connect
The ODE PoE Mk2 is factory set to use DHCP IP addressing. Simply connect to your existing IEEE 802.3af (PoE enabled) network infrastructure and any supported DMX over Ethernet software to be able to connect to it.
Supports either LTP or HTP Merging (upto 2 sources). Either enable or disable merging, to suit your needs.
RDM over Art-Net
RDM to RDM-Net and vice versa is possible in both directions. When enabled, all RDM fixtures connected to the ODE PoE Mk2, can be configured using any ArtRDM capable software.
Input or Output
Choose from ‘Input Mode’ (receives DMX, and sends over Ethernet), or ‘Output Mode’(sends DMX). DMX Input mode supports options for broadcast or unicast.
Each ODE POE Mk2 comes with a 2m CAT5 ethernet cable and a quick start guide (power adapter is not included).
Recommended App: D-Pro
- D-PRO 2U is a software based lighting controller which plays well with a host of different professional level hardware devices from ENTTEC.
- It has plenty of advanced features for the most demanding lighting professional applications
- includes D-PRO Player, a touch screen firendly interface to easily control your cues.
- An OSC controller (such as TouchOSC) can be used to remotely control D-Pro.
- Windows and Mac OSX compatible
Recommended App: ELM
- ELM : ENTTEC LED MAPPER provides total control over your LED system, regardless of shape and size.
- Design your layout with vector-based objects for maximum precision and flexibility.
- Load the media of your choice and begin playback as needed
- Supports Spout and NDI
- Supports RGB, RGBW, RGBA, RGBAW/RGBWA and White fixtures
The ODE PoE Mk2 is compatible with all software and controllers capable of outputting ArtNet, ESP or sACN. The list below reflects just some of the lighting control software it’s compatible with:
