Compact and powerful DIN-Rail Ethernet pixel converter, that can drive up to 8,192 channels (2,730 RGB Pixels).

PLEASE NOTE: Due to the current global components shortage, a surcharge has been temporarily added to our regular purchase price for this product. The price displayed below already includes this figure.

Head here for more information.

FeaturesDownloads

Available on backorder

$750.00 +GST

SKU: 71066

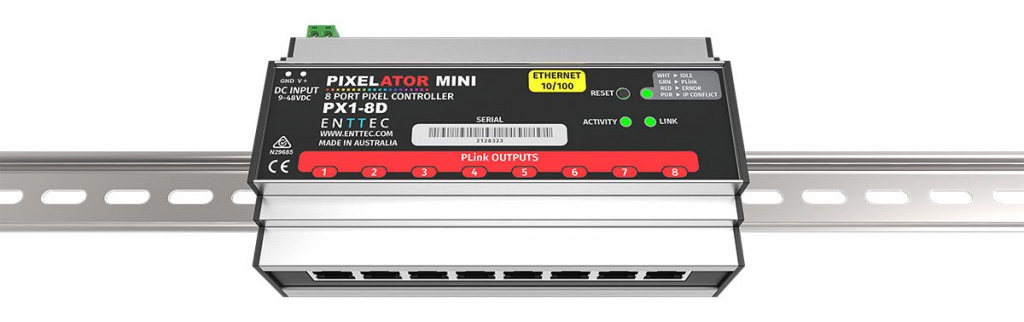

Super-compact Pixelator Mini for DIN-rail applications

The Pixelator Mini PX1-8D is a DIN-rail Ethernet pixel converter. A compact version of ENTTEC’s flagship Pixelator. It is small yet powerful enough to control up to 8,192 channels (2,730 RGB Pixels). Above all, it does it with perfect synchronization across all of its eight outputs up to 300m away when combined with the PLink system.

The unit’s robust DIN-rail hardware features a variable 7-24v input and front LED indicators to show the status and connectivity of each unit. As a result, used in conjunction with its intuitive web interface, this device makes installations quick and easy every time.

Controlling LED pixels, dots, and LED strips has never been more simple with input support for sACN and Art-Net 1, 2 & 3, as well as outputs for a wide range of pixel protocols.

Alternatively, the Pixelator Mini PX1-8D is available in a 1U half-width form factor for rackmount solutions.

DIN-Rail Ethernet Pixel converter

Features

Remarkable engineering

From the same team that brought you the original PIXELATOR comes this super-compact DIN-rail device. With the same classic functionality as our famous PIXELATOR MINI Ethernet-to-PLink driver, the PIXELATOR MINI PX1-8D is an 8-output, 16-Universe DIN-rail-mountable pixel controller. And it is still powerful enough to control 2720 individual RGB pixels. Remarkable indeed!

Expert pixel sync

With a spectacular performance from all outputs and combined with our expertise in pixel control, the ENTTEC’s Pixelator range offers the best Ethernet to pixel converters in their class.

Supports a wide range of LED pixel strips and dots

Simply connect any ENTTEC pixel strips or pixel dots to the Pixel Link ports (using PLink Injector and external power), or bring your own LED strips or dots. See the Downloads section for a comprehensive table showing all currently compatible LED protocols.

Smarter pixel conversion

Our DIN-Rail Ethernet Pixel converter manages pixel conversion in a smart and efficient manner, to always maintain a perfect output. Thanks to its miniature size, it’s the smallest, yet smartest converter out there.

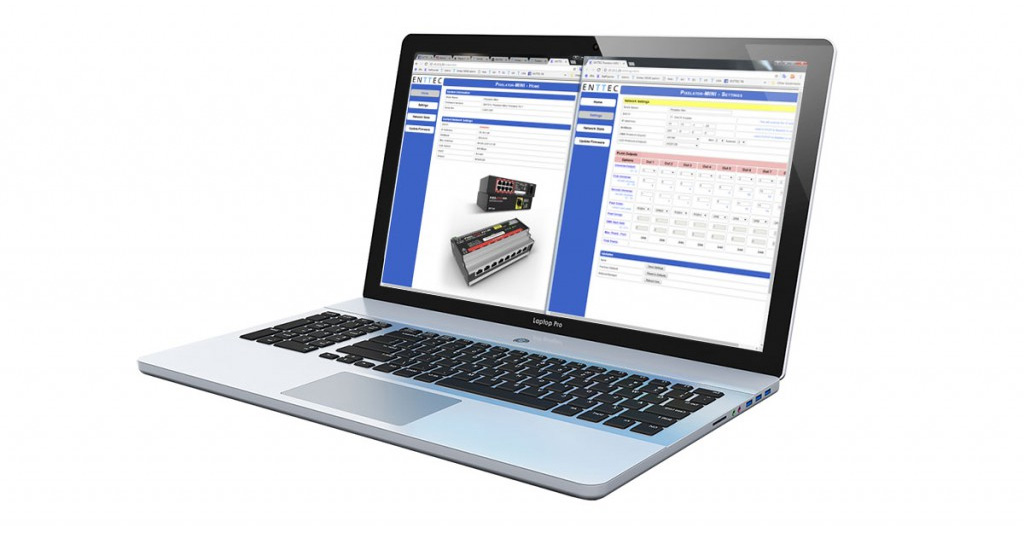

Web-based configuration

Use any modern web browser to manage the Pixelator Mini PX1-8D. A very simple and easy-to-use settings page allows you to configure each output as required. In addition, each output supports the mapping of up to 2 Ethernet Universes.

DIN-Rail Ethernet Pixel converter

Multi-protocol support

  • ArtNet 1/2/3
  • sACN
  • ESP
  • Kling-Net

Input/output

  • 8 x PLink output ports on RJ45 (Pixel Link data)
  • 1 x 10/100Mbps Ethernet port
  • 1x 2 pin screw terminal (Power in)

 Compatible  Apps

  • ELM: ENTTEC LED MAPPER: the award-winning software that provides total control over your LED system, regardless of shape and size.
  • Design your layout with vector-based objects for maximum precision and flexibility.
  • Load the media of your choice and begin playback as needed.
  • Supports Spout and NDI.
  • Supports RGB, RGBW, RGBA, RGBAW/RGBWA, and White fixtures.

3rd Party Apps
